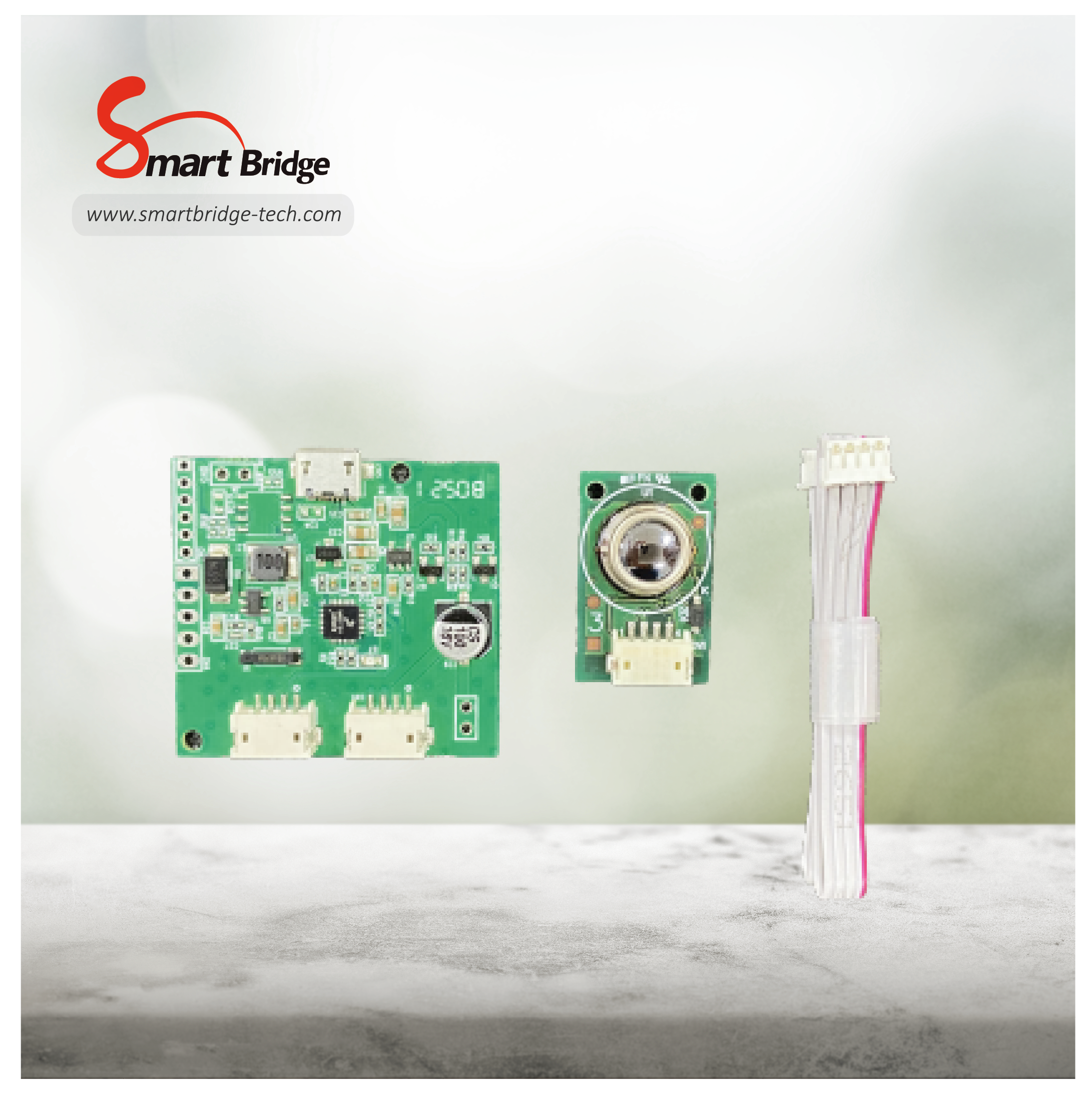

UART/USB Interface Contact-less Automatic and Safety Human Temperature Detection -Introduction This module 9401N-USB is a type of module series for our temperature detector serial. Using 8*8 Thermopile Array sensor to capture the temperature of human body. It can measures the thermal energy to capture and calculate through a contact-less method. And it send out temperature by UART and USB 2.0 interface. -How it works? Using 8 x 8 thermal imaging sensor technology to calculate the temperature from human body. And allow users to directly obtain accurate temperature data. Thermopile Array Sensor Specification Applications The module design is for UART/USB interface application. Now, COVID-19, this module could be used for ID card, facial recognition. And the specific place can be focus on hospital, schools, buildings, public spaces, etc. Additional Resources For more information about Modules or related applications, check out some of our online for reference. Thank you.
│Module selection
│Body Temperature Detection Module
The human body temperature is detected through high-precision technology. The detection process without any physical contact and energy release. This product only catches the temperature by humans body (forehead). Through the UART and USB 2.0 interfaces to output the data and the system integration in series.
Control Board Specification
² Out Interface :
- USB and UART for data output
- Power from USB or connector
³ UART specification : 19200, 8N1• Resolution : 8*8 thermal image
• FOV : 35 degree
• Distance : 30 to 40 cm
Module Specification
² Data output: USB port and UART port from module
³ 8*8 Thermolpile Array sensor detect 10~15uM wavelength
⁴ Detect area : forehead area 30~50 cm
⁵ Temperature accuracy : ±0.3° C
