WiFi Fall Down Detector Fall Detection Use in Bathroom Bedroom or Public Spaces To Detect Someone Falls Down

│IoT Smart Elder Healthcare
│Fall-Down Detector^WiFi

Tuya WiFi & APP Non-Contact Auto-Detection Safety with Privacy Waterproof IP54

There is some of facts about older adults and people who fallen down. It could happen at home, in the bathroom or somewhere you never knew.

Fall Down is a serious problem that we are worry everyday especially for elders. In fact, when seniors have a dangerous and happened in their daily live, actually we can not give a hand to them immediately, it may cause the badly consequence. First, the elderly people can be fall down anytime in somewhere like specific places, such as bathroom. Second, it is really hard to prevent or stop the accident happen everyday. However, even though they are stay home!

To make an effort to save more time and notice the accident, we design this product with a high-precision thermopile array sensor, and the short process time empowers the user to get more time to do something efficiently after the accident happened. It means the device calls for help even if the person is unable to do so themselves, signaling prompt emergency response to address the situation. Besides, it is without any camera and private issue.

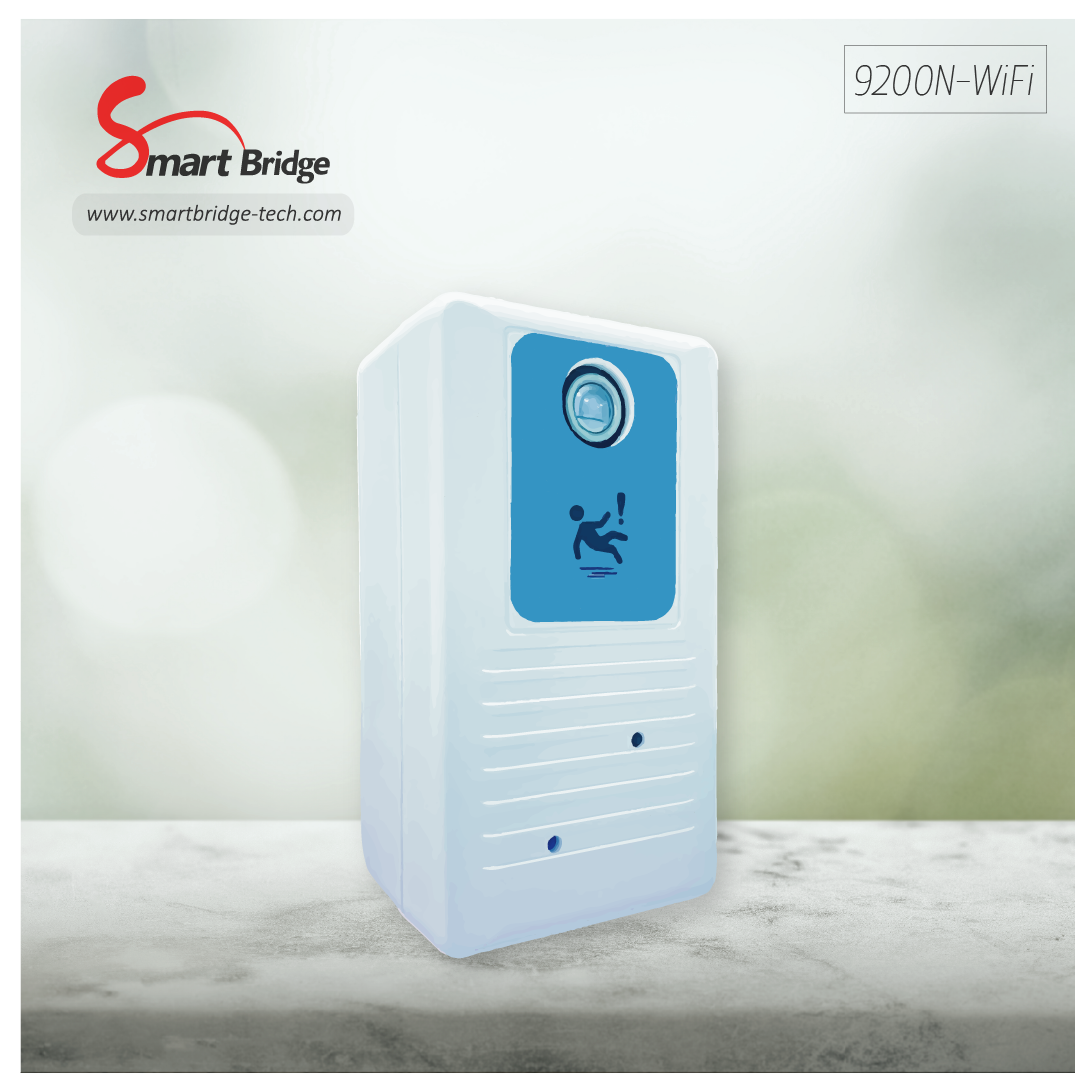

Fall Down Detector is a non-wearable, safety and high reliable device for end users. Completely do not need to change the lifestyle of the elderly, do not need to wear or stick on the body. Just stick on the wall in your bathroom, or bedroom. It also supports to use in the hospital's room and bathroom. When monitoring people fallen, fall down detection device will report alerts to the nurse station immediately.

Detection Methodology ─ Fall Down detector is suitable for home and some specific areas with easily setup.

1. Install the device as you need, you can setup in the bathroom or your bedroom, like room's bed-side which might happen usually.

2. Need to pair with our Gateway : standard pack is 1 gateway pairs 1 fall down sensor. Besides, 1 Gateway can be paired with up to 8 Fall-Down Detectors.

3. Plug in the power and make sure your WiFi and the network is smoothly already could be connected.

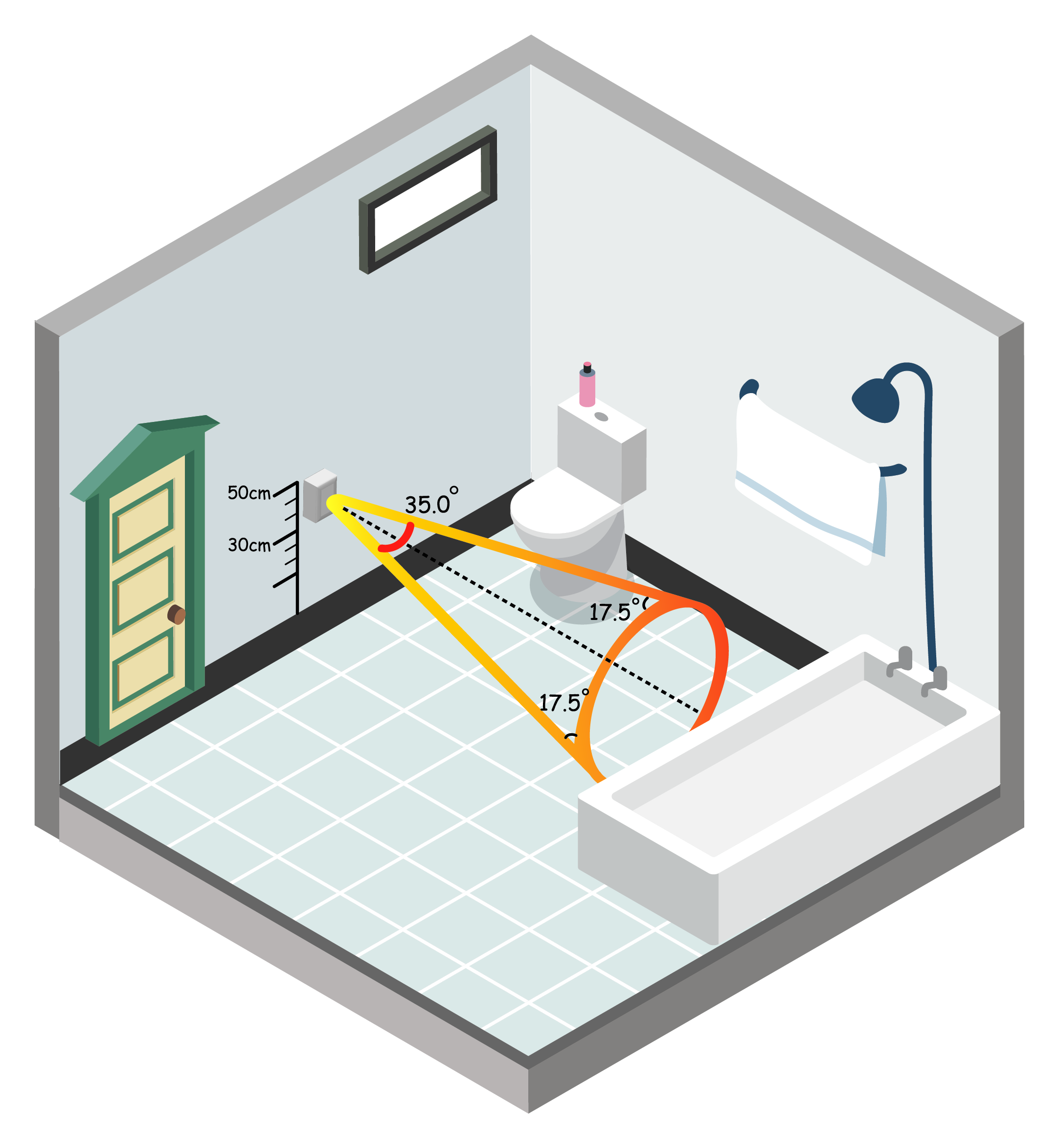

| Scenario in a bathroom : The fall-down detection sensor was set up in the bathroom, and the detect area angle is FOV 35 degree.

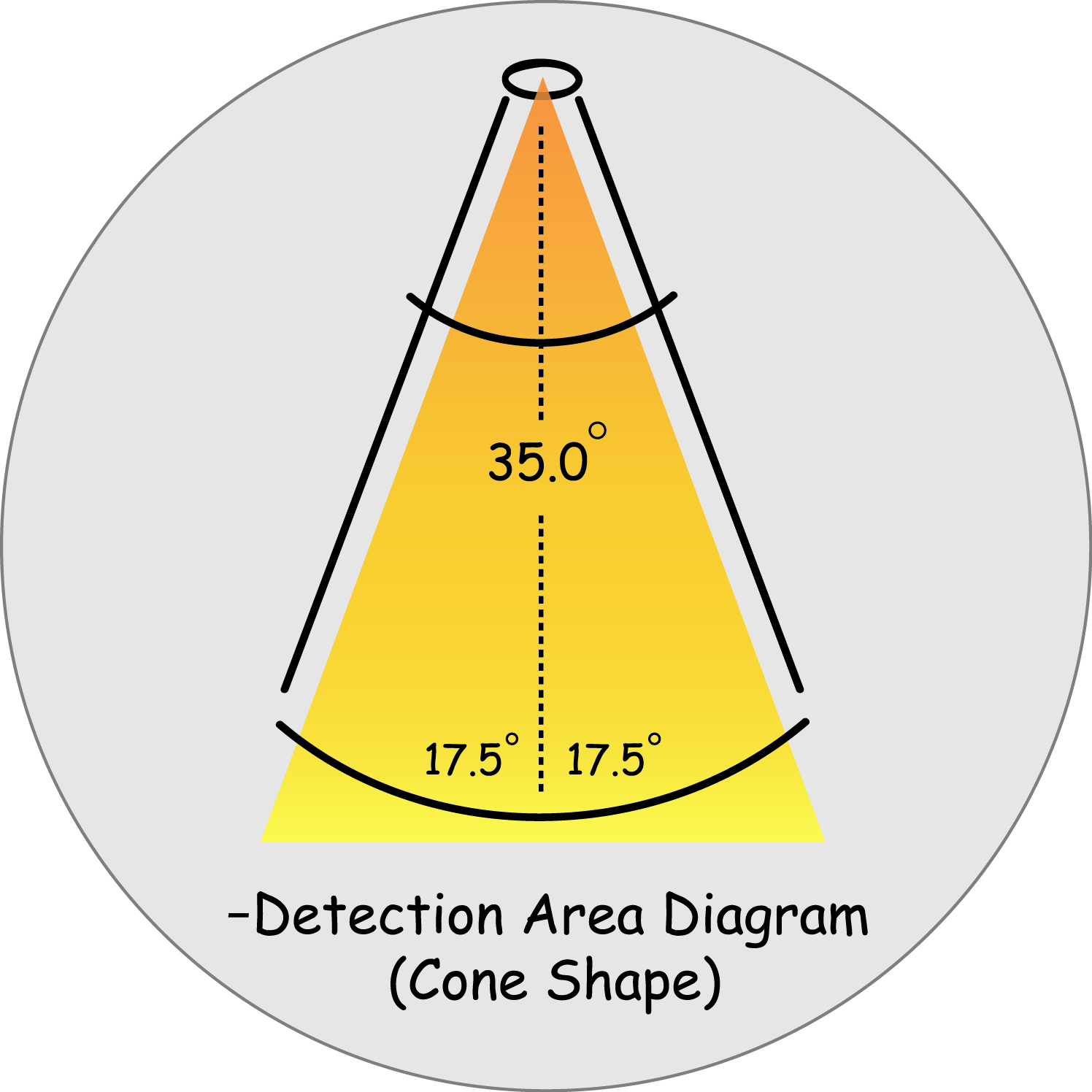

FOV : H: 35 degree/V: 35 degree view angle

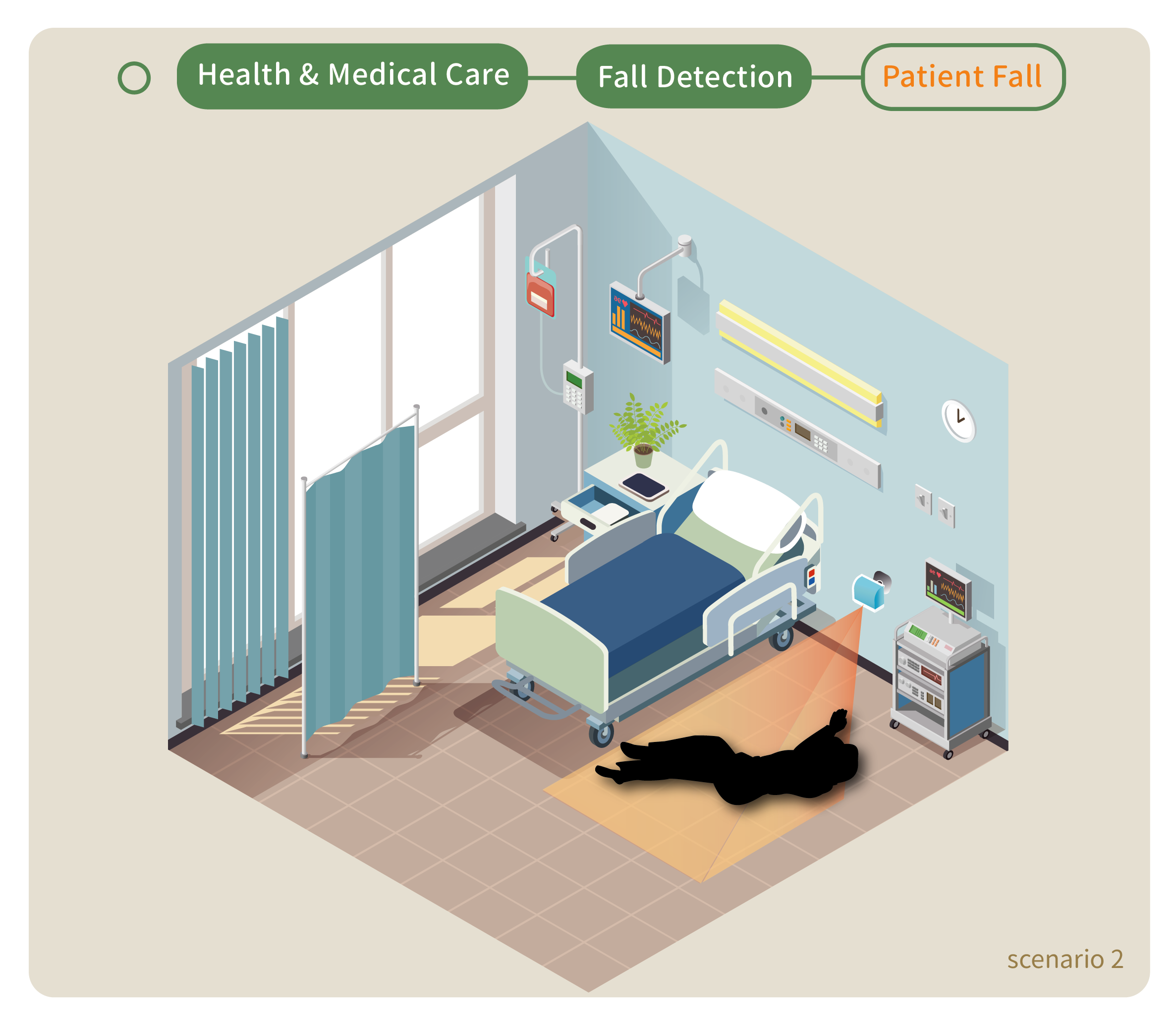

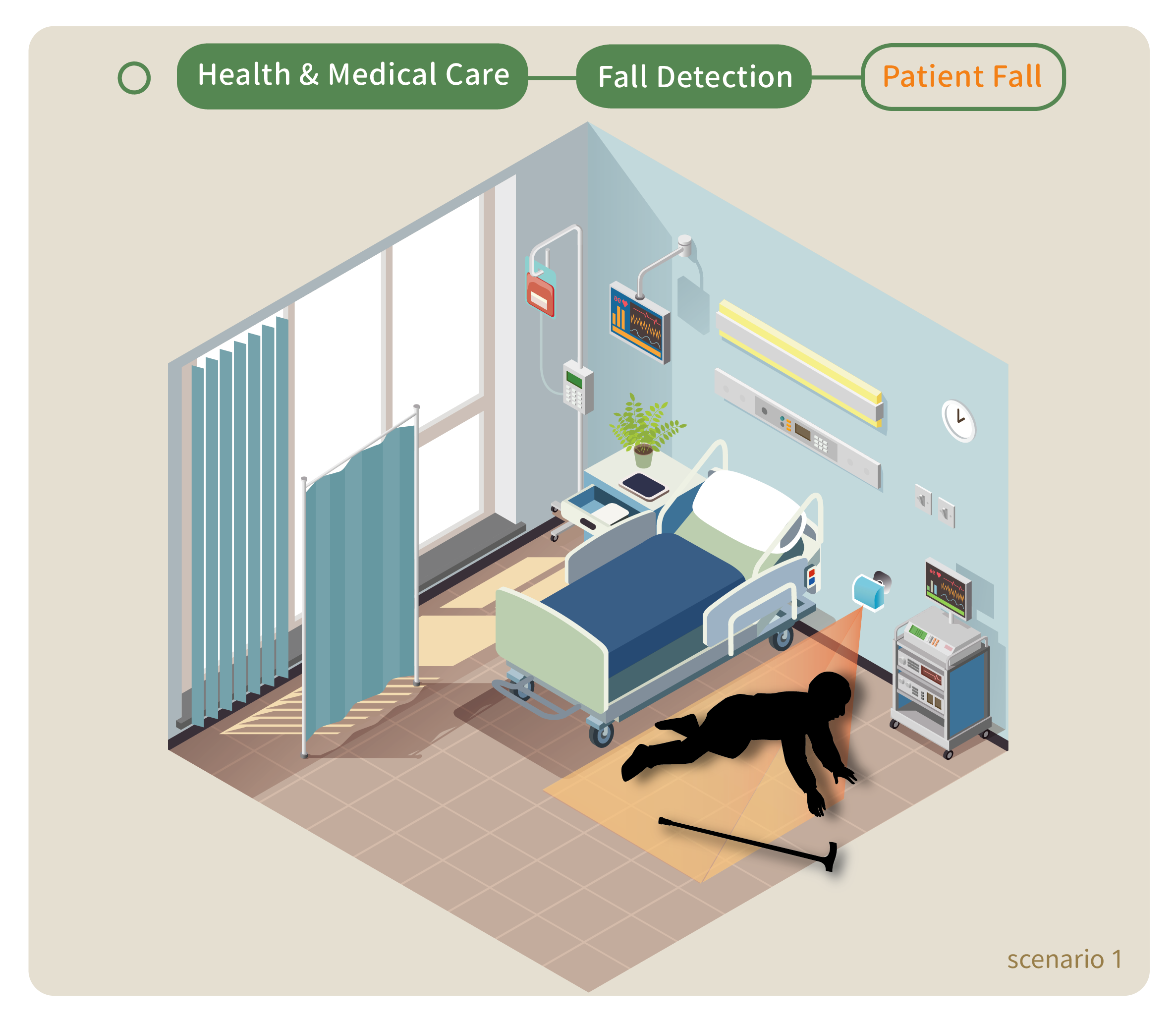

| Scenario in a hospital room : there are different scenarios of fall accident happened on a patient.

The fall-down detection sensor was set up on the bedside, and the detect area angle is FOV 35 degree.

Features

• Safety - no radiation
• Privacy - no camera and no privacy issue
• Application - real time monitor and alert report
• Fit Design - simple setup and contact-less
• Range - distance 3 m, view angle 35 degree

Specification and Working Principle

¹ Using 8*8 Thermopile Array sensor₁(core technology)
² Distance : 3 m (Maximum Distance)
³ FOV : H: 35 degree/V: 35 degree view angle
⁴ Working Temperature : ≤30°C
⁵ Power : DC 5V1A
⁶ Tuya WiFi module Specification

* Download Tuya Smart (iOS/Android)

Support 802.11bgn specification with 14 channels

Support WPA/WPA2 encryption mode

Max TX power: 20dBm @802.11b

⁷ Automatic detection and analytic individual
energy and behavior.
⁸ The device reports alert continue for 10 seconds.
⁹ Collect temperature and analyse history data
automatically.

¹⁰ Passed waterproof level IP54

▲ App：Tuya Smart (iOS/Android)

Applications

• Bedroom
• Bathroom
• Public Area
- Hospital (side of wards, bathroom)
- Long-Term Care Facilities
- Home Health Care Center

Additional Resources

For more information about Fall Down Detector applications,

check out some of our online for older adults and seniors.
